• ultrasonic extraction
  • YP-S900
  • Power 900W, crushing capacity 0.5-600ml
  • YP-S900
  • ultrasonic extraction
  • Power 900W, crushing capacity 0.5-600ml
Typical applications include nanotechnology (production of nano-particle materials and graphene dispersions), cell lysis, sample preparation, homogenization, ChIP analysis, emulsification, disintegration and deagglomeration, as well as applications in the field of sonochemistry processing.

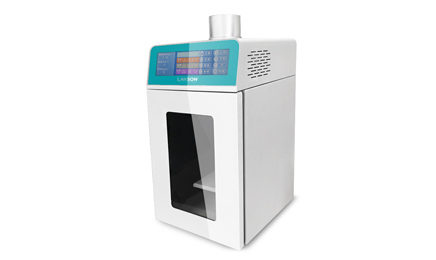

Product Introduction
900W ultrasonic extraction can safely process various organic and inorganic materials from 250 µL to 600 mL*. The YP series ultrasonic products have typical applications in nanotechnology (production of nanomaterials and graphene dispersions), cell disruption, sample preparation, homogenization, ChIP analysis, emulsification, deagglomeration and disaggregation, as well as applications in sonochemical processing.


Product Features
● Energy and temperature setting point control
● Digital circuit + 7-inch wide screen (touchscreen)
● Automatic frequency tuning accurate to 1Hz + real-time monitoring of sample temperature
● 99-hour working time setting
● Variable power output control, adjustable from 1-99%
● Electric lifting + jog setting
● Automatic frequency searching, accuracy ±1Hz and real-time display


Technical Parameters
Model: YP-S900
Power: 900W
Power control range: 1-100%
Processing volume: 0.5-600ml
With digital intelligent ultrasonic generator: Frequency automatic searching
Resonance frequency: Real-time tracking and display
Frequency tracking accuracy: 1Hz, real-time tracking and display
Electric lifting soundproof box: The working table adopts electric lifting and lighting device
Display mode: 7-inch TFT color screen
Frequency range: 18-25KHz
Total time range: 00:00:01-999:99:99 (hour:minute:second)
Output time: 0.1-99.9 (seconds)
Gap time: 0.1-99.9 (seconds)
Output duty cycle: 0.1-99.9%
Temperature protection for materials: 1. Temperature setting: 0-99℃
2. When the material temperature reaches the set value, ultrasonic stops. When the material temperature is 2℃ lower than the set value, ultrasonic automatically resumes working.
Document storage: 99 sets
Random amplitude rod: Φ10
Optional amplitude rod: Φ2 / Φ3 / Φ6
Protection alarm: Over-temperature, over-current, overload, transducer abnormality, etc.
Power supply: AC110/220V F50/60Hz
Overall dimension: 280*280*495
Overall weight: 12.7KG
Main unit + transducer weight: 15.3kg
Outer packing size: 534*295*435mm


Other Parameters
Transducer Weight: 1680 g
Transducer Size: 256mm×76.5mm
Random Amplitude Bar Weight: 495 g
Random Amplitude Bar Size: 140mm×6mm
Amplitude Bar Material: Titanium Alloy Ti-6Al-4V


Probe Type Selection
Model Broken cell capacity
Φ2mm 150ul-5ml
Φ3mm 200ul-10ml
Φ6mm 10ml-150ml
Φ10mm 10ml-600ml


Single Page - Color Page
Name: Author: Action:
ultrasonic extraction YP-S900 Ultrasonic Download


Related products
Name: Model:
ultrasonic extraction YP-S900
ultrasonic emulsifier YP-S650
ultrasonic homogenizer YP-S500
Product List
YP-S900 Unit
Host Machine Unit
Vibration System (Transducer Assembly) Set
Special Wrench (used for disassembling the amplitu Set
Special Thermostatic Circulating Reaction Cup Piece
Power cord piece
User manual copy
Warranty card copy
Certificate of qualification copy
Description
1
1
1
Optional
1
1
1
1
